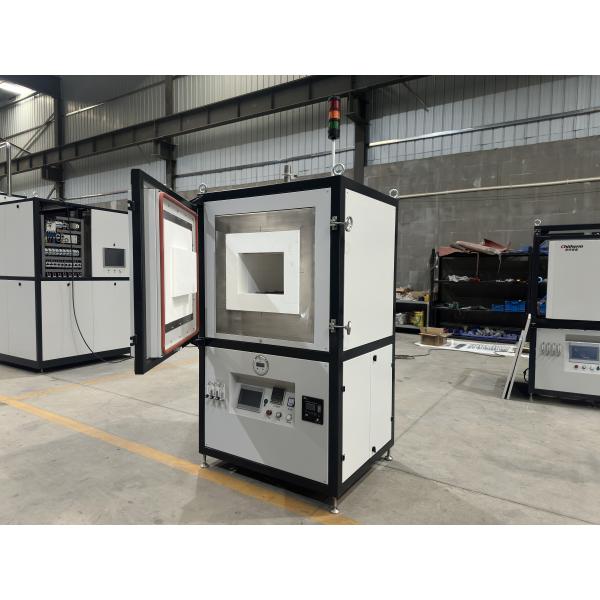

Mbf22-11n Medium-Temperature Atmosphere Box Furnace

Brand Name : Chitherm

Model Number : MBF22-11N

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Customized

Supply Ability : 50 Sets/Year

Delivery Time : Customized

Packaging Details : Customized

Range of Applications : Industrial

Type : Electric Holding Furnace

Usage : Steel Molding

Fuel : Electric

Atmosphere : Air

Effective Chamber Dimensions : 2000×2000×3000 (D×w×h)

Rated Temperature : 1000ºC

Maximum Temperature : 1100°c

Transport Package : Wooden Packaging

Specification : 1520× 1520× 3000mm(W*H*D)

Trademark : Chitherm

Origin : China

HS Code : 8514101000

Customization : Available

Certification : ISO

Place Style : Vertical

Contact Now

MBF22-11N Medium-Temperature Atmosphere Box Furnace
Product Specifications
Range of Applications Industrial
Type Electric Holding Furnace
Usage Steel Molding
Fuel Electric
Atmosphere Air
Effective Chamber Dimensions 2000×2000×3000 (D×W×H)
Rated Temperature 1000°C
Maximum Temperature 1100°C
Transport Package Wooden Packaging
Specification 1520×1520×3000mm (W×H×D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Technical Specifications

Equipment Name and Model: MBF22-11N Medium-temperature Atmosphere Box Furnace

Basic Configuration
Rated Temperature 1000°C
Maximum Temperature 1100°C
Effective Size 330mm×200mm×330mm (W×H×D)
Sagger Specification 330mm×100mm×330mm (W×H×D), provided by the customer
Loading Method The sagger is supported by SiC roller rods and arranged in a double-layer and longitudinal double-row manner
Heating Element Silicon carbide rod is inserted inside the ceramic tube
Thermocouple Type N Graduation
Number of Temperature Control Points 1 point
Temperature Control Method Imported temperature control module, with a temperature control accuracy of ±1°C and a PID parameter self-tuning function
Sintering Atmosphere Nitrogen/Air
Oxygen Content Better than 10ppm + the oxygen content of the gas source
Oxygen Detection One micro oxygen analyzer is configured to monitor the oxygen content in the furnace chamber in real time
Pressure Detection A digital differential pressure gauge displays the pressure in the furnace in real time
Number of Program Steps 4×16 steps
Heating Rate ≤5°C/min
Reference Dimensions of the Appearance 1300mm×1900mm×1160mm (W×H×D, excluding the chimney), and the specific dimensions shall be subject to the actual product
Mbf22-11n Medium-Temperature Atmosphere Box Furnace
Delivery List
Item Note Qty.
Basic Components Furnace 1 PC
Inspection Certificate Certificate of major outsourced components 1 SET
Technical Documents Instruction Manual, Random Technical Documents of Each Main Outsourced Component, etc. 1 SET
Key Components Silicon Carbide Rod Inserted in the Ceramic Tube 1 SET
Temperature Control Instrument Shimaden (Japan) 1 PC
Oxygen Analyzer 1 PC
Spare Parts Silicon Carbide Rod 2 PCS
Company Profile

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces.

Our product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics.

These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
