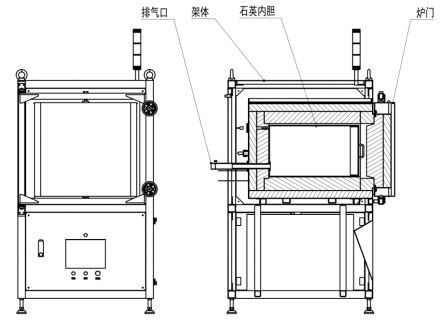

MBF100-10 Type Medium-Temperature Clean Box Furnace

Mainly used for high-temperature heat treatment processes of similar products such as electronic devices and electronic ceramics.

• Rated Temperature: 900°C
• Maximum Temperature: 1000°C
• Inner Lining Material: Fused Quartz
• Effective Dimensions: 450 × 450 × 500mm (W × H × D)
• Heating Rate: ≤10°C/min
• Heating Elements: FEC ceramic fiber heating plates, heating from all four sides
• Temperature Stability: ±1°C, with PID parameter self-tuning function
• Temperature Uniformity: ±5°C (tested with an empty furnace at constant temperature of 900°C)
• Thermocouple Type: K-type
• Number of Temperature Control Points: 1 point
• Number of Temperature Control Segments: 9 segments
• Exhaust Chimney: Equipped with an exhaust port at the rear, which can be manually adjusted
• Inlet Design: Allows the introduction of dry, clean, oil-free compressed air or oxygen into the furnace chamber
• Alarm Protection: Over-temperature, open circuit, etc., with audible and visual alarm protection
• Maximum Heating Power: 16 kW
• Typical Insulation Power for an Empty Furnace: ≤8 kW
• Surface Temperature Rise: <35°C
• Equipment Weight: Approximately 450 Kg
• Equipment Exterior Color: Light Grey
• Reference External Dimensions: 990 × 1680 × 1095mm (W × H × D)

• Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance
• Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m²
• Power conditions: capacity greater than 22kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz (according to local situation)
• Installation site: 2000mm×2000mm×3000mm (W×H×D), installation area greater than 4m²
